LMDG (Steady-burn Type)
LMDFG (Flashing Type)

Features :

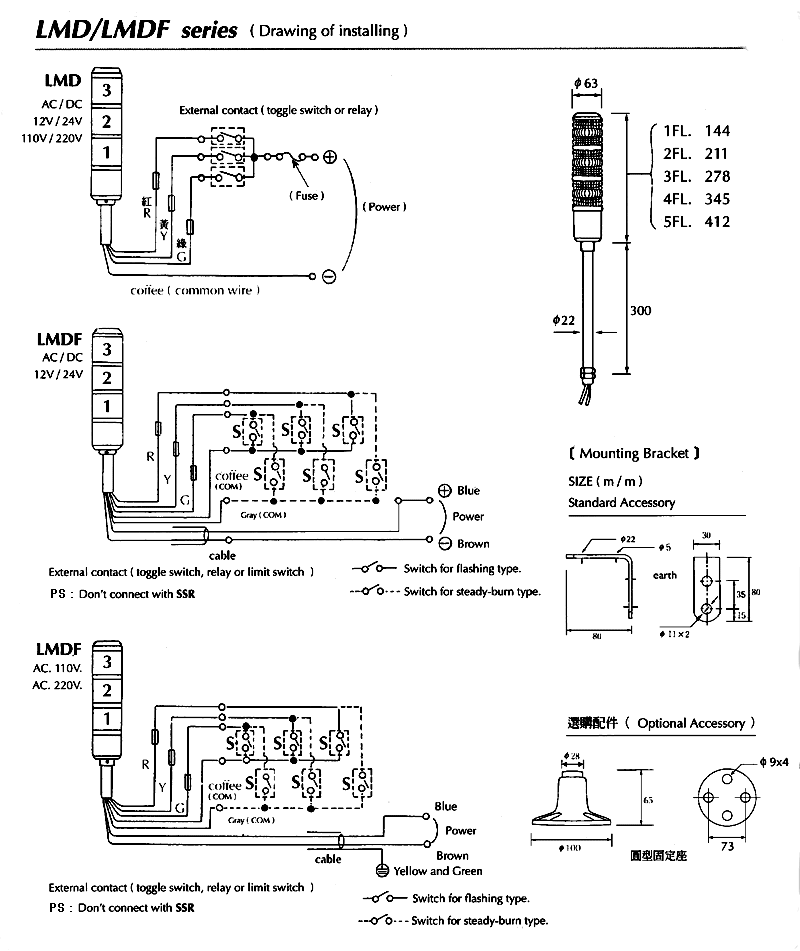

Drawing of installing

1.

Dome : With unique newly design. It can enlarge the light power and show up wide visibility.

Click for big picture

2.

It is super-bright, shock-proof and long-life for the LED bulb type.

3.

The LED bulb is low power consumption which approximates to 1/3 of bulb.

4.

The LED bulbs : operating on 12V, 24V, 110V, 220V; other specifications by request. Colors are available in red, yellow, blue, green & clear.

5. The LED bulbs and our incandescent bulbs are changeable each other. (Only for the incandescent bulbs from our company).

6.

The LED bulbs with waterproof and Dust-Resistance.

LMD Specifications :

Model

1 FL

2 FL

3 FL

4 FL

5 FL

Voltage

Bulb

Flash rate

LMD-12

0.1A

0.2A

0.3A

0.4A

0.5A

DC

12V

12V

_

LMD-24

0.04A

0.08A

0.12A

0.16A

0.2A

DC or AC

24V

24V

LMD-110

0.02A

0.04A

0.06A

0.08A

0.1A

AC

110V

130V

LMD-220

0.02A

0.04A

0.06A

0.08A

0.1A

AC

220V

240V

=BA15D

LMDF Specifications :

Model

1 FL

2 FL

3 FL

4 FL

5 FL

Voltage

Bulb

Flash rate

LMDF-12

0.1A

0.2A

0.3A

0.4A

0.5A

DC

12V

12V

70 FPM

LMDF-24

0.04A

0.08A

0.12A

0.16A

0.2A

DC or AC

24V

24V

LMDF-110

0.02A

0.04A

0.06A

0.08A

0.1A

AC

110V

130V

LMDF-220

0.02A

0.04A

0.06A

0.08A

0.1A

AC

220V

240V

=BA15D

Remark :  LMDF type operating on DC 12V or 24V, please connect with switch or relay.
